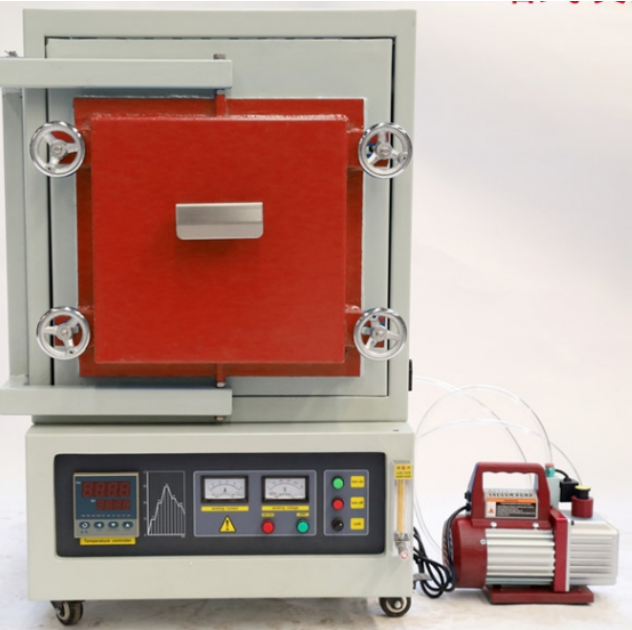

Our atmosphere muffle furnacee ensures that the oxygen content in the furnace is minimized by pre vacuuming, then nitrogen, argon or nitrogen hydrogen mixed gas is introduced to obtain the ideal heat treatment state under atmosphere protection. Due to its excellent atmosphere compact practicality, it has been widely used in material laboratories or small batch production of products such as semiconductors silicon nitrideases.

SPECIFICATION：

PARAMETERS：

Characteristics:

Temp Range: RT~1400 ℃

The furnace adopts polycrystalline alumina fibers, with a balanced temperature field no pollution

Fully enclosed furnace structure, double-layer thickened steel plate shell, capable of withstanding a pressure of 0.1Mpa

The top, left, right, back are reinforced with 12mm solid square steel bars, which do not deform when vacuumed.

The Max vacuum degree can reach -0.08MPa

Standard vacuum range: Negative pressure -0.1mpa to positive pressure 0.02mpa

The temperature control system adopts industrial precision 0.2 level intelligent instruments, PID regulation, 30 50 segment programming

The furnace door has good sealing performance, with four handwheels tightly locking the furnace door silicone ring sealing

Standard Parts:

One fireproof brick for furnace door

One pair High temperature gloves

One Crucible clip

Two pcs Thermal elements

One vacuum pump

One manual
