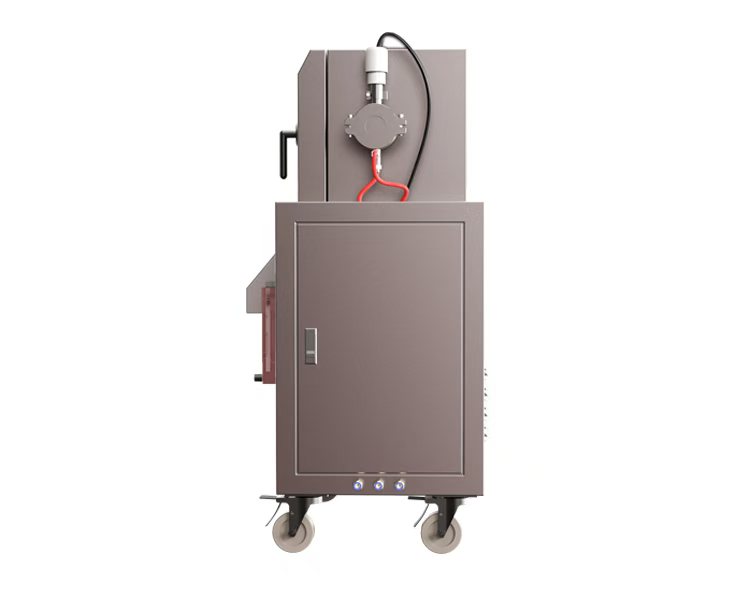

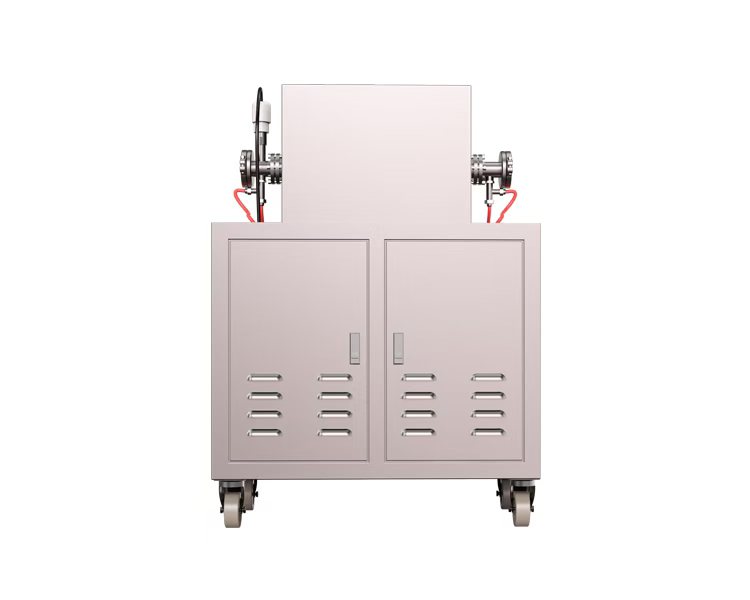

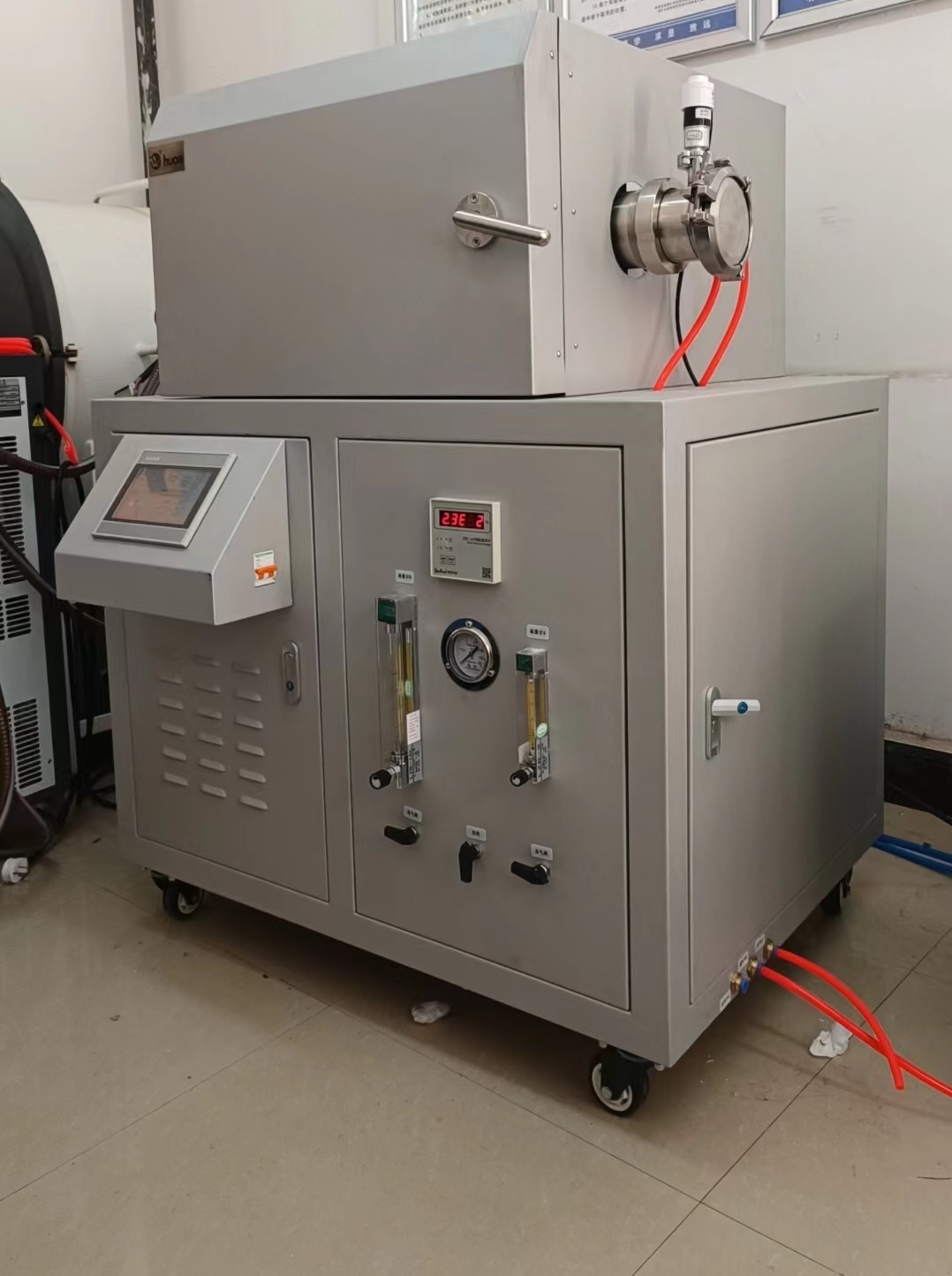

High Temperature Microwave Tube Furnace
TM-LT3000
Detailed Product Description
1. Temperature up to 1600 ℃
2. Microwave heating.
3. No pollution to material
Main technical parameters：
MODEL | TM-LT3000 |
POWER SUPPLY | 220±10V 50Hz |
RATED POWER | 5KW |
Microwave output power | 0.01～2.80kW continuously variable
|
Microwave frequency | 2.45GHz |
WORK TEMPERATURE | ≤1600℃； |
Heating space | Ф50×250mm(diameter×length) |
Temp measruing way | infrared thermometer+thermocouple |
Measure range | Thermocouple：RT～1600 ℃ |
Temperature accuracy | Read ±1℃ |
Control way | Touch screen +PLC+(40 sections of temperature control) |
Insulation system | Customized HTF1800 module with 1800 ℃ high-purity cured polycrystalline fiber, density of 0.6g/cm3 (± 0.05 g/cm3), detachable microwave-assisted heating module, customized sagger made of absorbing material |
Control procedure | The control system adopts international brPLC combined with high-definition touch screen operation, with automatic control, manual, constant temperature modes. Multiple process schemes can be set, large capacity data storage is available, Export experimental data through USB interface; Real time display of curves, online alarm; Self developed control software, one click oven setting, Scalable remote control, alarm customized functions according to the demand. |
Static ultimate vacuum degree | ≤100Pa；pumping speed≧2L/S |
Atmosphere requirements | Two way intake, precise control of gas flow rate; Rapid pre vacuuming, capable of filling with oxidizing gases, inert gases, weakly reducing gases, etc |
Microwave Leakage | < 1mW/cm2 (Safety standard < 5mW/cm2) |
Magnetron alarm | Over temp alarm、over current alarm |
Furnace door protection | Protection swich |
Funace body | 530×430×380mm (L×W×H) |
Control cabinet | 900×500×700mm (L×W×H) |
Package size | 1000mmx1200mmx1200mm |
Application field:
- Specially apply for synthesis of high-purity metal nitride
- Catalytic decomposition reduction on SO2 NOX
It can also be used in following fields:
1. Compounding sintering of inorganic powder
1). Carbide: SiC, CrC, VC, etc
2). Nitride: Si3N4, MnxNy, AlN, VN, CrN, etc
3). Electronic ceramic powder: barium titanate, barium-strontium titanate, strontium titanate, barium zirconate titanate, etc.
4). Fluorescent powder (LED powder, three primary colors, long after glowing phosphor powder, etc)
5). Lithium-ion battery material: lithium cobaltoxide, lithium manganate, LiFePO4, etc, anode cathode carbon materials.
6). Multi colors ceramic pigment, glaze material, ceramic raw material, etc.
2. Inorganic material/products sintering
1). Electronic ceramic: BaTiO3, SrTiO3, ZnO piezoelectric ceramics, PTC thermo-sensitive components, etc.
2). bio medical ceramic: man-made bones, teeth, MgO, Al2O3, ZrO2, SiC, Y2O3, Si3N4, SiO2, etc high performance structure ceramic.
3). Daily-used ceramics, arts crafts ceramic.
3. Incinerating
4. Melting thermal treatment
5. Melt oxidized ore carbon thermal reduction
6. Specially suitable
Configuration list
No. | item | specification | qty | remark |
1 | Power line | 1 | 16A/3 holes plug、3m wire | |
2 | Microwave source | Industrial grade 1.5kw MW system 2（including magnetronswitch） | 2 | 2X1.5KW installed to furnace |
3 | Tubural insulation system | 1 | 1800℃ tubural insulation structure | |
4 | Quartz tube | Φ60mm×680mm | 2 | |
5 | Corundumtube | Φ60mm×680mm | 2 | |
6 | MW specific heating material | 1 | 1800℃ | |
7 | Thermocouple | RT-1600℃ | 1 | B type |
8 | Vane vacuum pump | Pumping speed≧2L /S | 1 | Equiped with two sets of high precision float flow meters |
9 | PLC | 1 | Mitsubishi | |
10 | Touch screen | 1 | ||
11 | Furnace body tablet | 304Stainless steel carbon steel spray coating | 1 | |
12 | Sealing rings | 4 | ||
13 | MW Leak detector | 1 | ||
14 | Other accessories | 1 | Including HP gloves materials hook etc | |
15 | Chiller | 1P | 1 |
