ASQF1400-36

5 - 1 Prev | Next Play

1 / 5

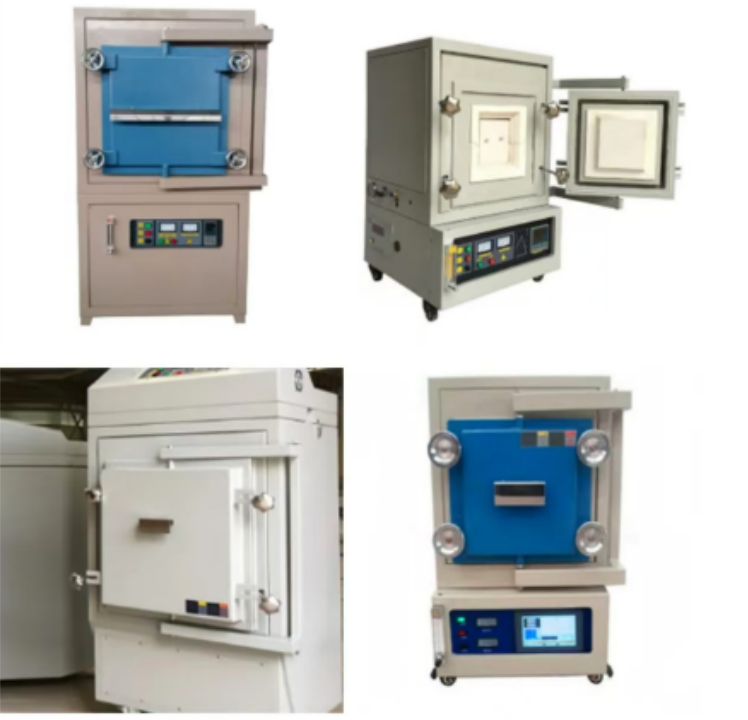

Our atmosphere muffle furnacee ensures that the oxygen content in the furnace is minimized by pre vacuuming, then nitrogen, argon or nitrogen hydrogen mixed gas is introduced to obtain the ideal heat treatment state under atmosphere protection. Due to its excellent atmosphere compact practicality, it has been widely used in material laboratories or small batch production of products such as semiconductors silicon nitrideases.

SPECIFICATION：

MODEL	CHAMBER SIZE	VOLTAGE（v）	POWER（kw）	Max temperature
ASQF1400-1	100100100mm	220	1	1400℃
ASQF1400-2	120120130mm	220	2	1400℃
ASQF1400-3	150150150mm	220	3	1400℃
ASQF1400-5	150150200mm	220	4	1400℃
ASQF1400-8	200200200mm	220	5	1400℃
ASQF1400-12	200x200x300mm	220	7	1400℃
ASQF1400-27	300x300x300mm	380	9	1400℃
ASQF1400-36	300x300x400mm	380	11	1400℃

PARAMETERS：

WORK TEMPERATURE	1400℃
RATE TEMP	1400℃
VACUUM	-0.1Mpa
ATMOSPHERE	All inert gases, nitrogen, argon, carbon dioxide, water vapor
HEATING RATE	≤10℃/Min
ACCURACY	±1℃
HEATING ELEMENT	Silicon carbon rod (SiC) /Silicon molybdenum rod
THERMOCOUPLE	B type
VOLTAGE	380V 50HZ
VACUUM PUMP	VP125
Delivery time	10-15 DAYS

Characteristics:

Temp Range: RT~1400 ℃

The furnace adopts polycrystalline alumina fibers, with a balanced temperature field no pollution

Fully enclosed furnace structure, double-layer thickened steel plate shell, capable of withstanding a pressure of 0.1Mpa

The top, left, right, back are reinforced with 12mm solid square steel bars, which do not deform when vacuumed.

The Max vacuum degree can reach -0.08MPa

Standard vacuum range: Negative pressure -0.1mpa to positive pressure 0.02mpa

The temperature control system adopts industrial precision 0.2 level intelligent instruments, PID regulation, 30 50 segment programming

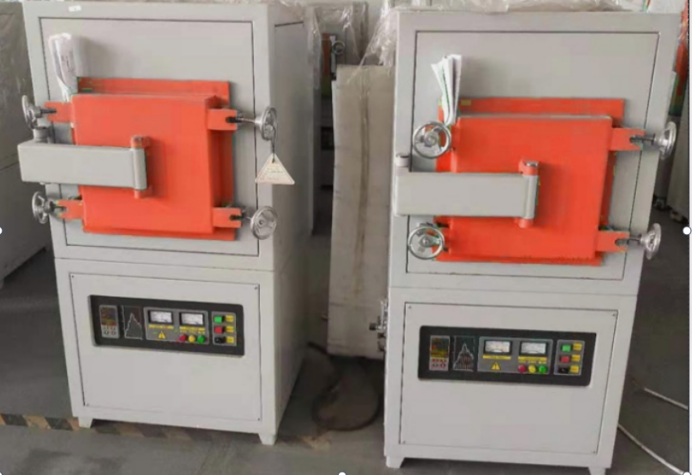

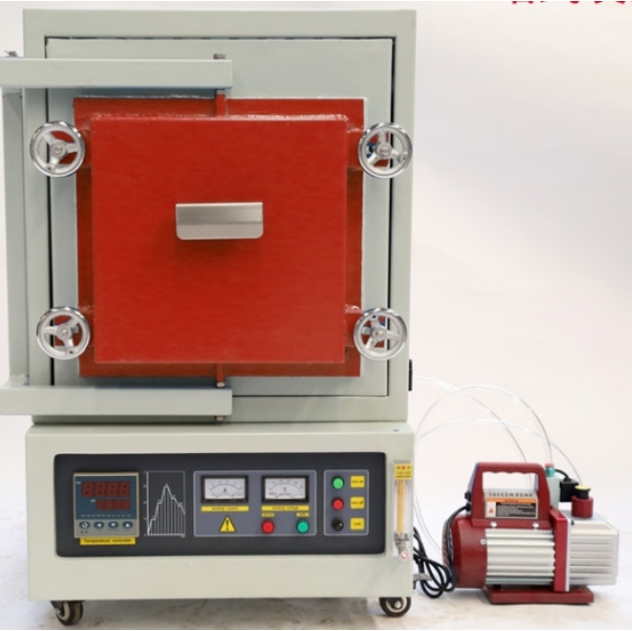

The furnace door has good sealing performance, with four handwheels tightly locking the furnace door silicone ring sealing

Standard Parts:

One fireproof brick for furnace door

One pair High temperature gloves

One Crucible clip

Two pcs Thermal elements

One vacuum pump

One manual
